OXAN is a high-strength steel carabiner for setting up anchors or for connecting to metal structures. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system. OXAN can be used with the CAPTIV bar to favour positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
FEATURES
High-strength steel carabiner, particularly suitable for setting up anchors or for connecting to metal structures
Oval symmetrical shape allows optimal positioning of the carabiner
Can be used with a CAPTIV positioning bar to promote loading of the carabiner on the major axis, to keep it integrated with the device and to limit the risk of rotation
Easier handling:
- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system to avoid any involuntary snagging of the carabiner
H-shaped cross-section:
- ensures an optimal strength/weight ratio
- protects markings from abrasion
Two locking systems available:

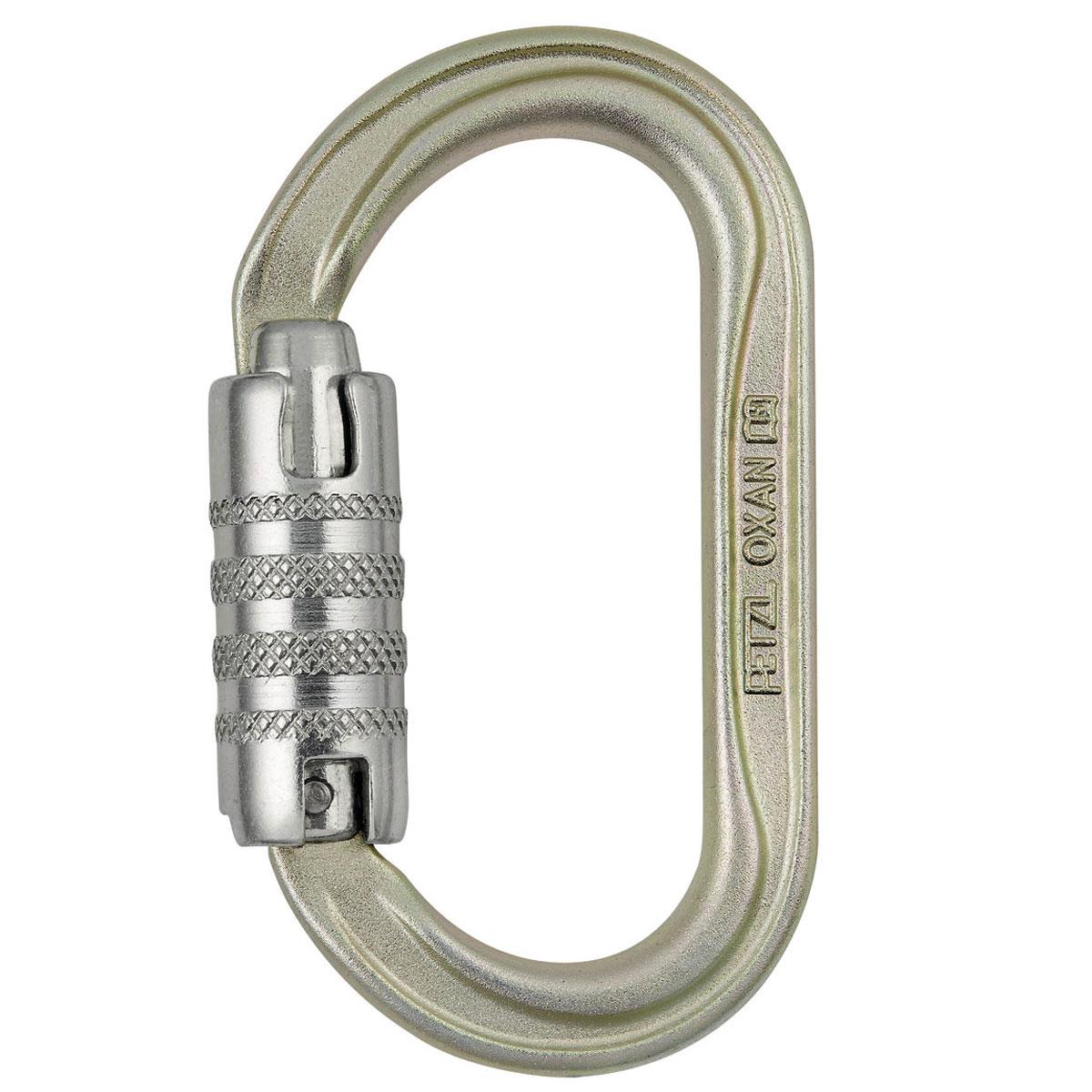

- TRIACT-LOCK: automatic locking with triple-action gate opening

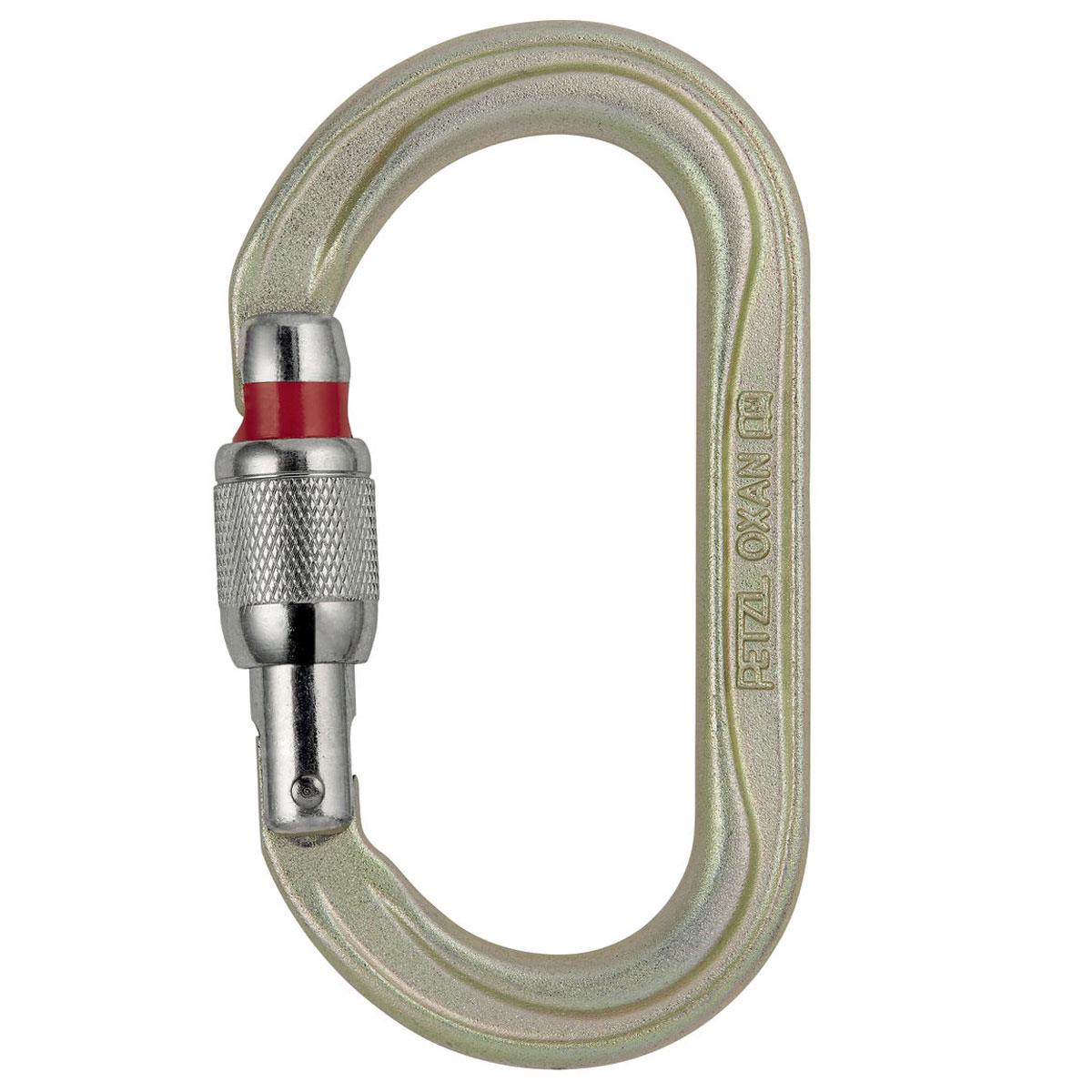

- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
SPECIFICATIONS
Materials: Steel
Weight:
- Triact-Lock (M72A TL) 195g
- Screw Lock (M72A SL) 185g
- Triact-Lock ANSI (M72A TLA) 230g
Major Axis Strength: 38kN
Minor Axis Strength: 16kN
Open Gate Strength: 15kN
Gate Opening: 22mm
Certification:
- M72A TL: CE EN 362, NFPA 2500 Technical Use, EAC, GB/T 23469 : B, XF 494 : FZL-G-Q
- M72A SL: CE EN 362, NFPA 2500 Technical Use, EAC, GB/T 23469 : B, XF 494 : FZL-G-Q
- M72A TLA: CE EN 362, ANSI Z359.12, NFPA 2500 Technical Use, CSA Z259.12, EAC
