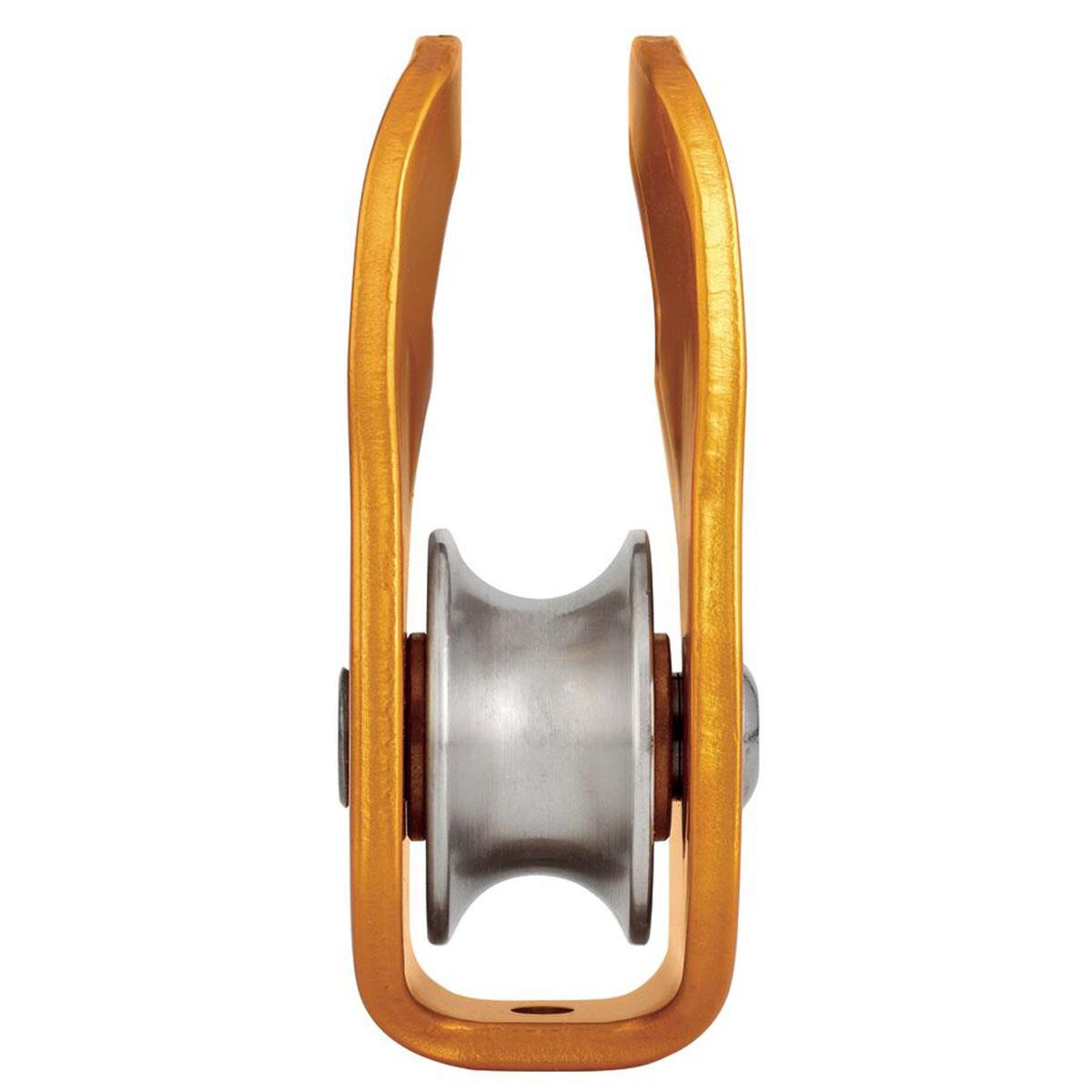

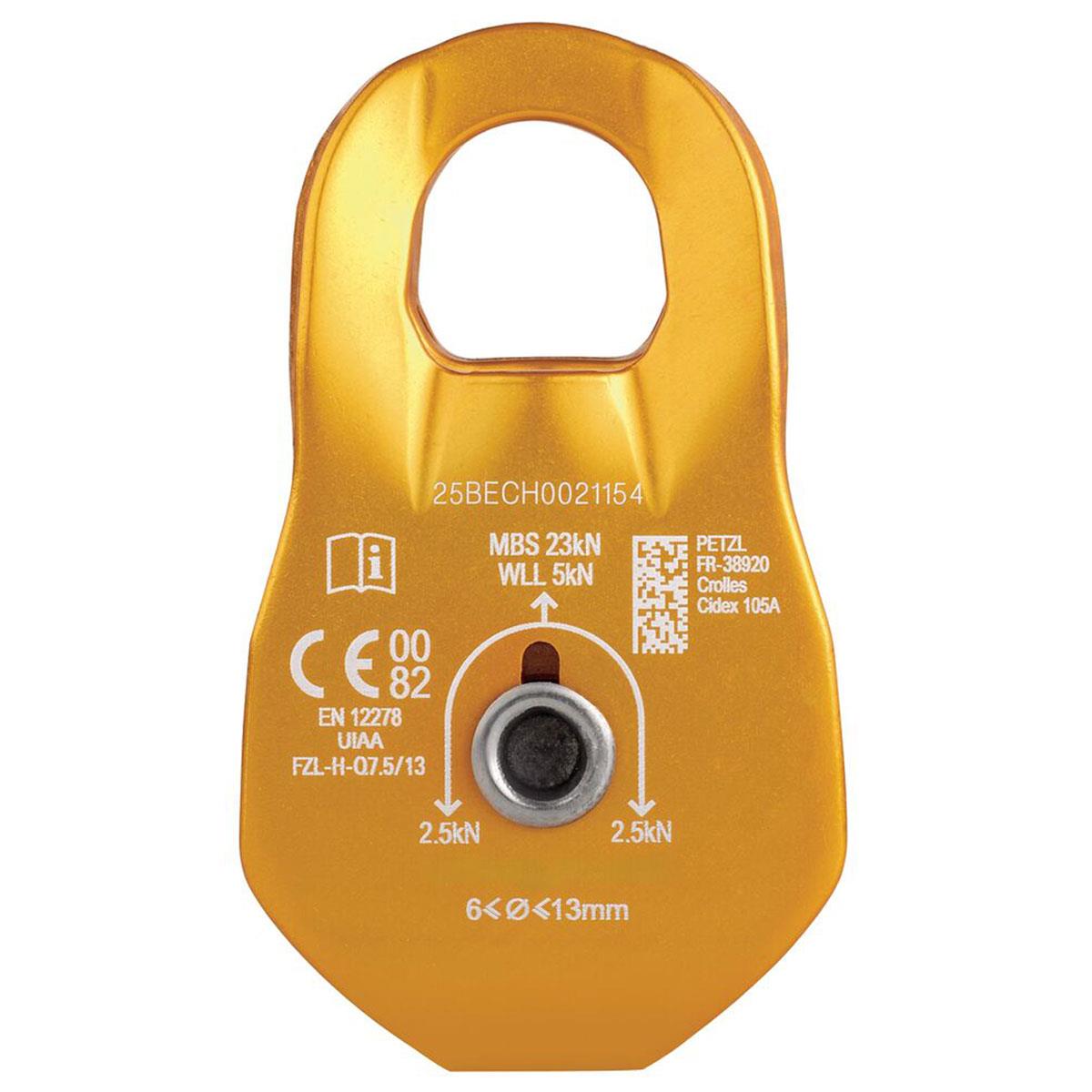

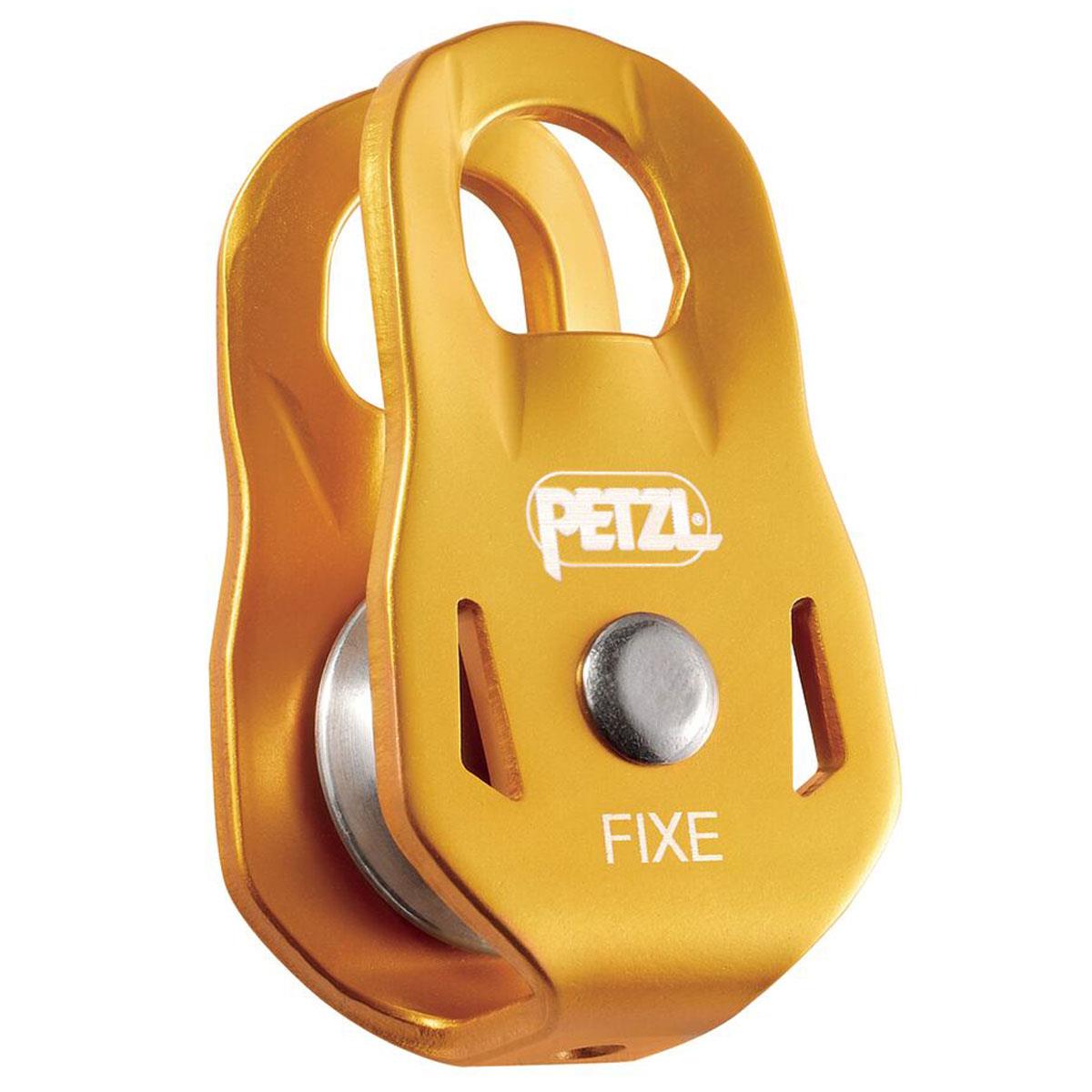

With a compact and versatile design, the FIXE pulley is built for setting up haul systems and load deviations. Fixed side plates allow quick rope installation and easy system setup.
FEATURES
- Designed for setting up haul systems and load deviations
- Fixed side plates allow quick rope installation and easy coupling with a rope clamp
- Sheave mounted on self-lubricating bushings provides good efficiency
- Attachment holes allow most European-standard carabiners to rotate
- For use with carabiners similar to the OK or WILLIAM
SPECIFICATIONS
Rope compatibility: 6 to 13 mm
Sheave diameter: 21 mm
Ball bearings: no
Efficiency: 71 %
Maximum working load: 5 kN
Breaking strength: 23 kN
Weight: 98 g
Certification(s): CE EN 12278, UIAA, XF 494 Light
Material(s): Aluminium, stainless steel
