The Am’D lightweight asymmetrical carabiner is made of aluminium. It has a D shape particularly suited for connection to diverse equipment such as descenders or positioning lanyards. Its fluid interior design and Keylock system facilitate handling. The Am’D carabiner is available in three locking systems: automatic TRIACT-LOCK or BALL-LOCK system, or the manual SCREW-LOCK system. Am’D may be used with a CAPTIV positioning bar to favour loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
FEATURES
D shape is particularly suited for connection to equipment such as descenders or positioning lanyards
Aluminium carabiner is light, reducing the weight of equipment the worker at height needs to carry
May be used with a CAPTIV positioning bar to favour loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
Easier handling:
- Fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system to avoid any involuntary snagging of the carabiner
H-shaped cross-section:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion
Available in three different locking systems:

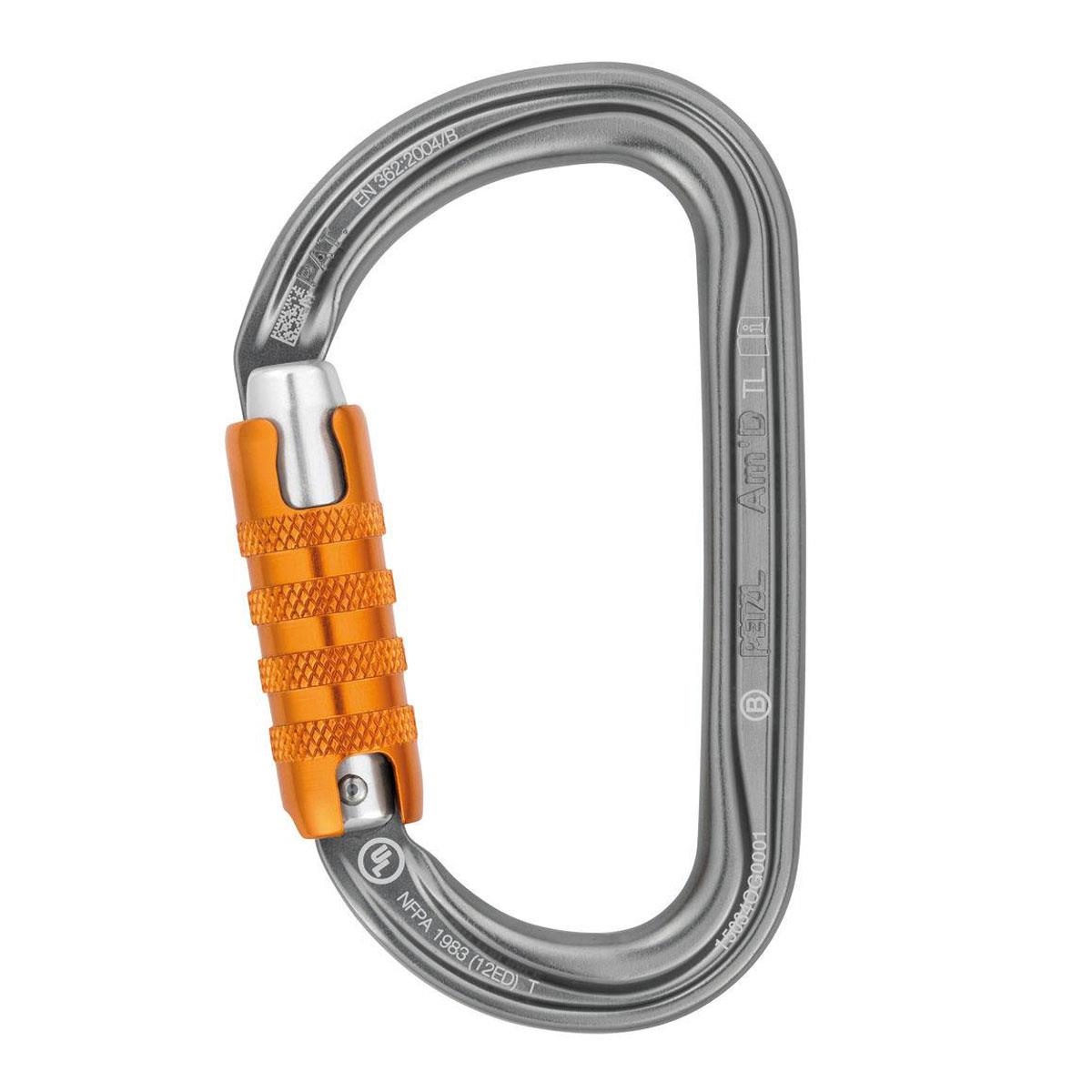

- TRIACT-LOCK: automatic locking with triple-action gate opening

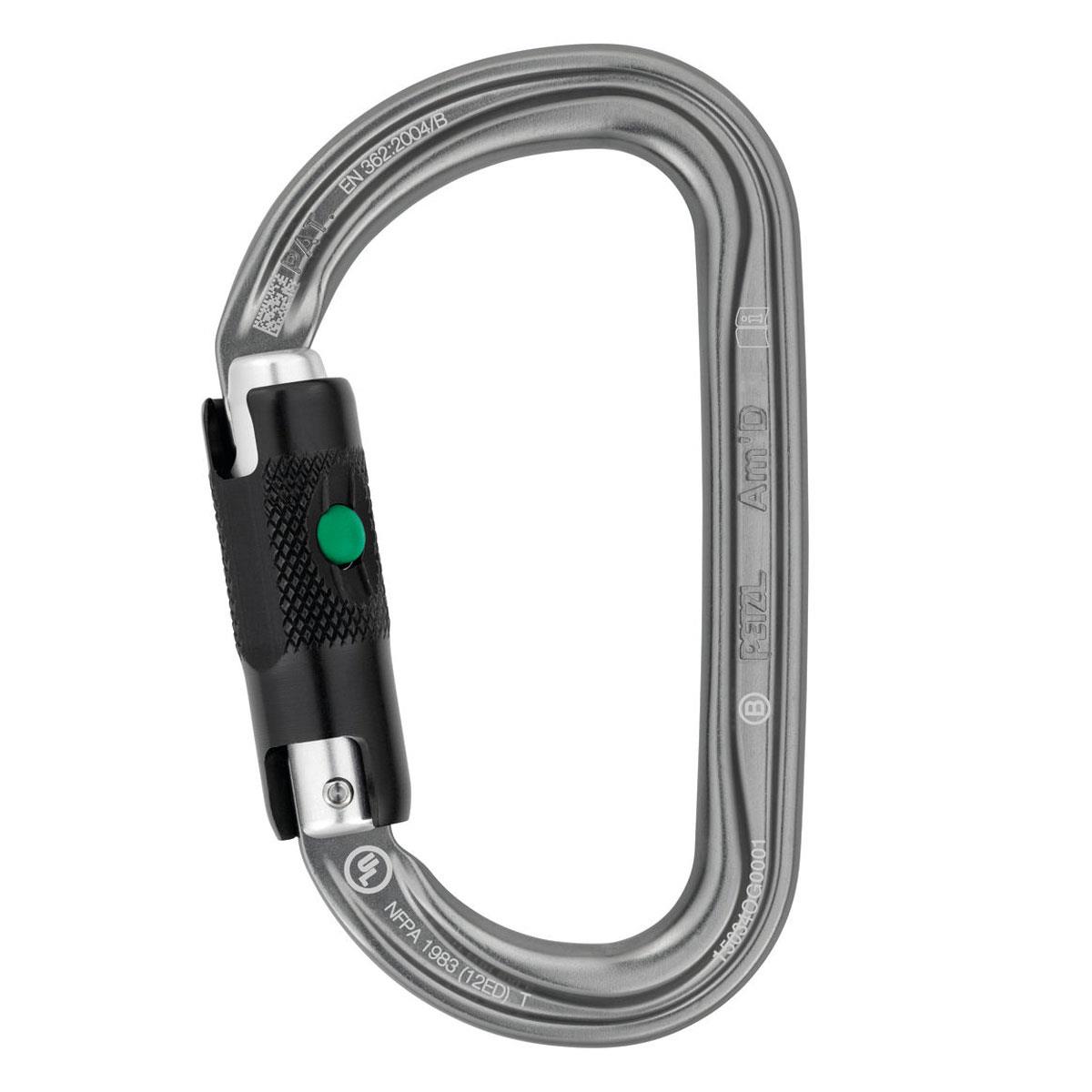

- BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator

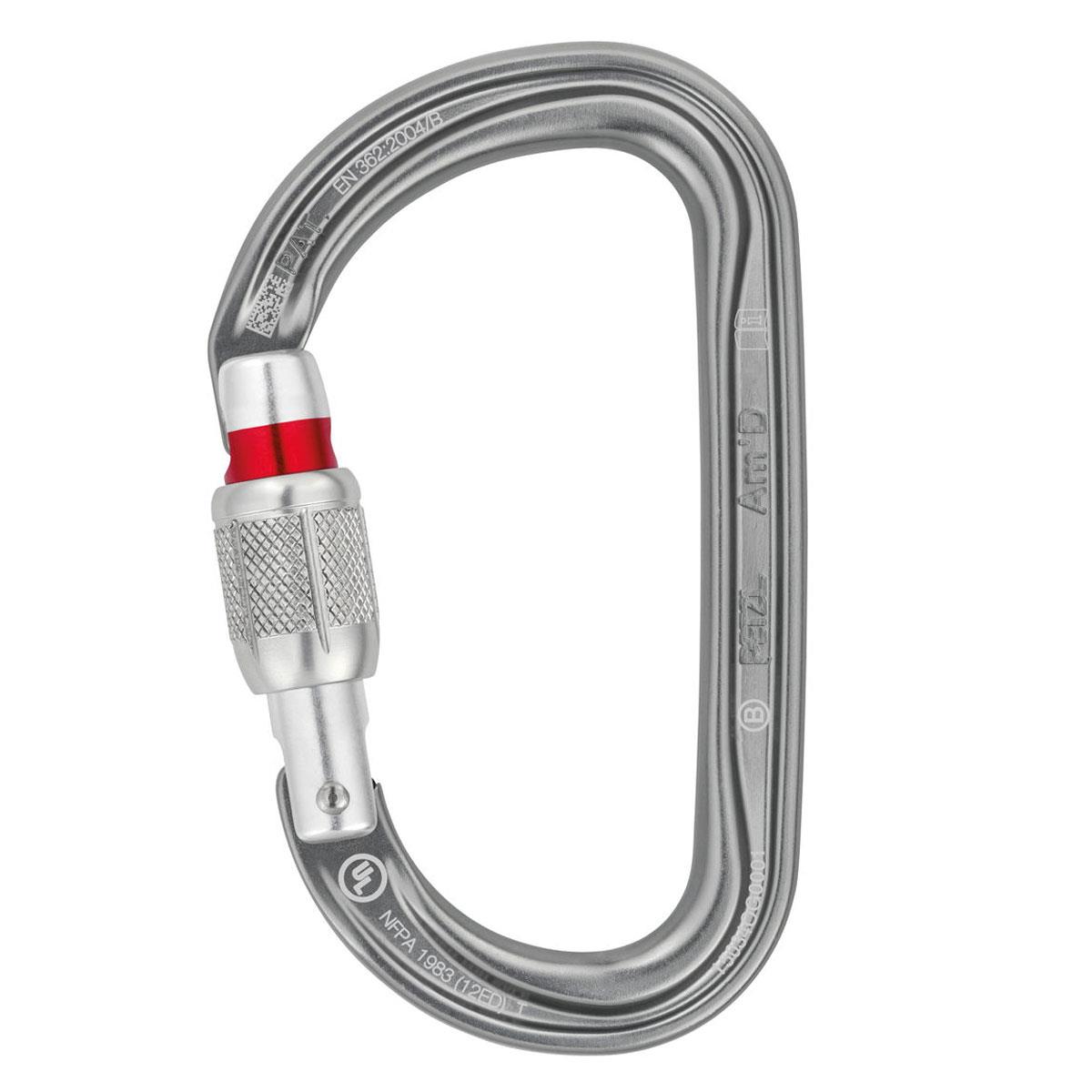

- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
SPECIFICATIONS
Material(s): aluminium
Certification(s): CE EN 362, 12275 type B, EAC, NFPA 2500 Technical Use, XF 494 : FZL-G-Q, GB/T 23469 / B
Weight:
- M34A BL 75g
- M34A RL 75g
- M34A SL 70g
Major Axis Strength: 27kN
Minor Axis Strength: 8kN
Open Gate Strength: 7kN
Gate Opening: 25mm
