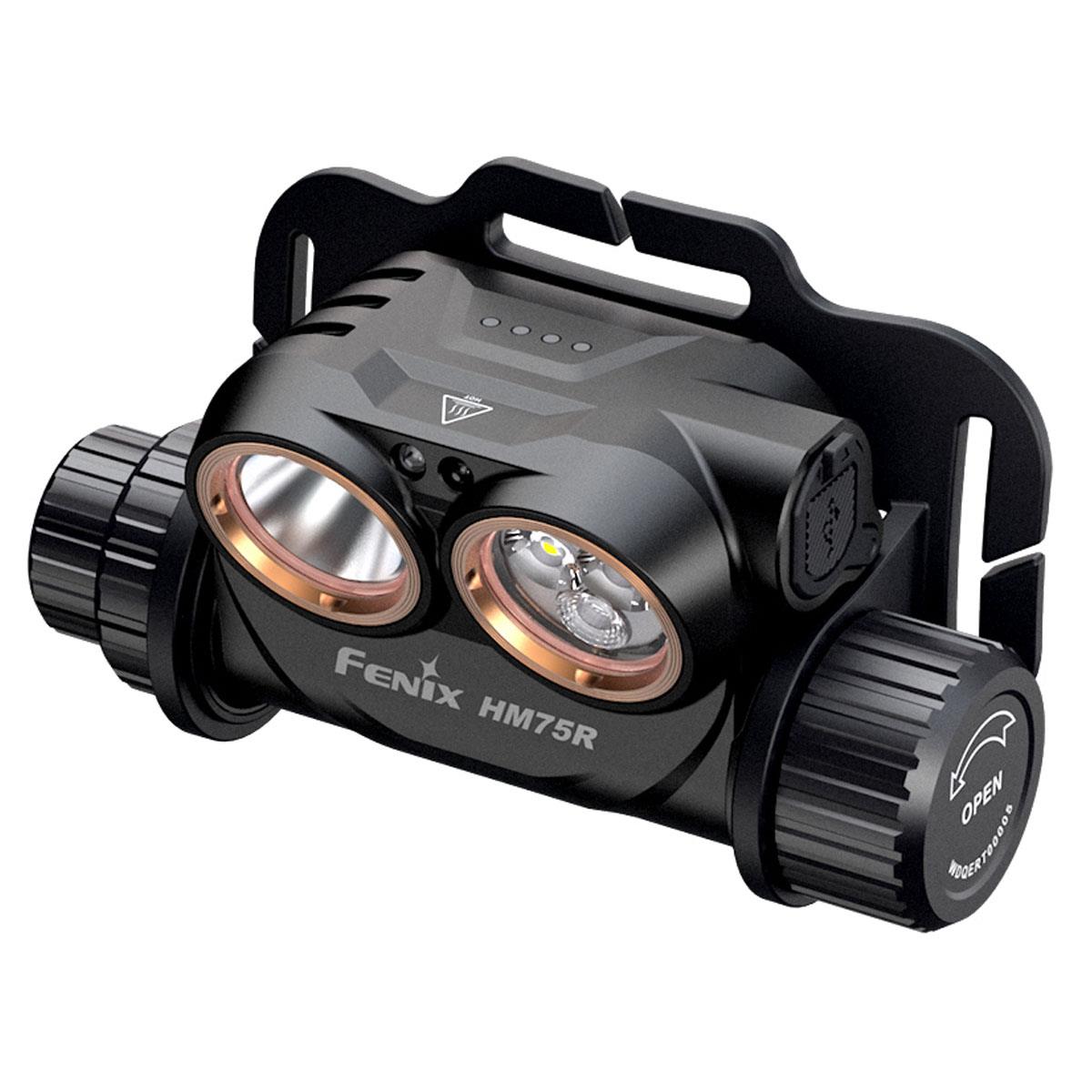

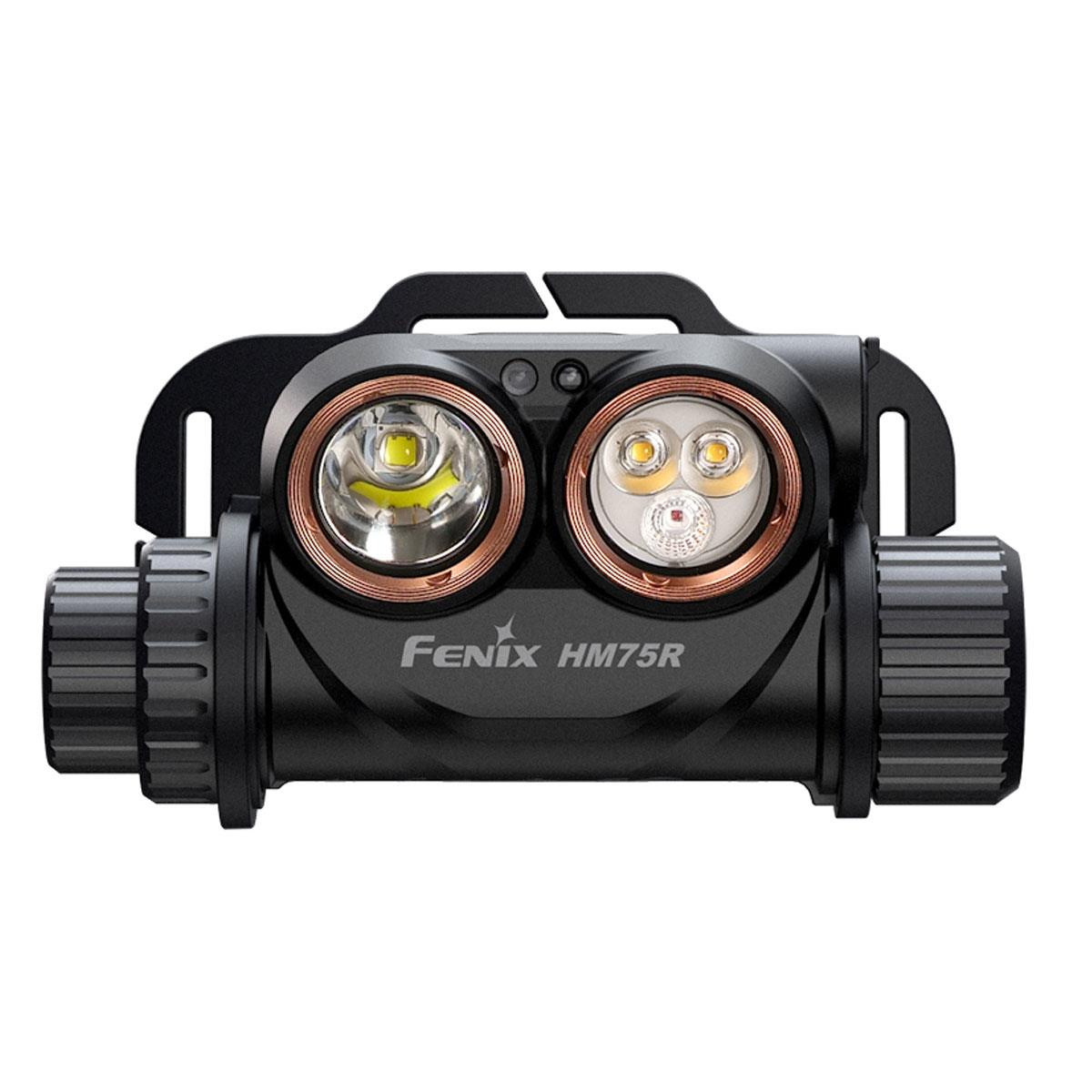

Fenix HM75R Dual Power Source Industrial Headlamp

Original price was: £189.95.Current price is: £174.75. inc. VAT

The Fenix HM75R headlamp features Luminus SST40 white, Luminus SST20 neutral white and Osram red LED’s. It has a 1600 Max lumen output and uses 1 x Fenix ARB-L18-3400 battery and 1 x Fenix ARB-L21-5000 V2 battery (both included)



1 in stock

The Fenix HM75R is a high-quality Industrial head torch which features a powerful 1600 lumen main beam, 1000 lumen floodlight and 120 lumen red light in a compact magnesium alloy head unit, powered by a replaceable 3400 mAh, 18650 Li-ion battery.

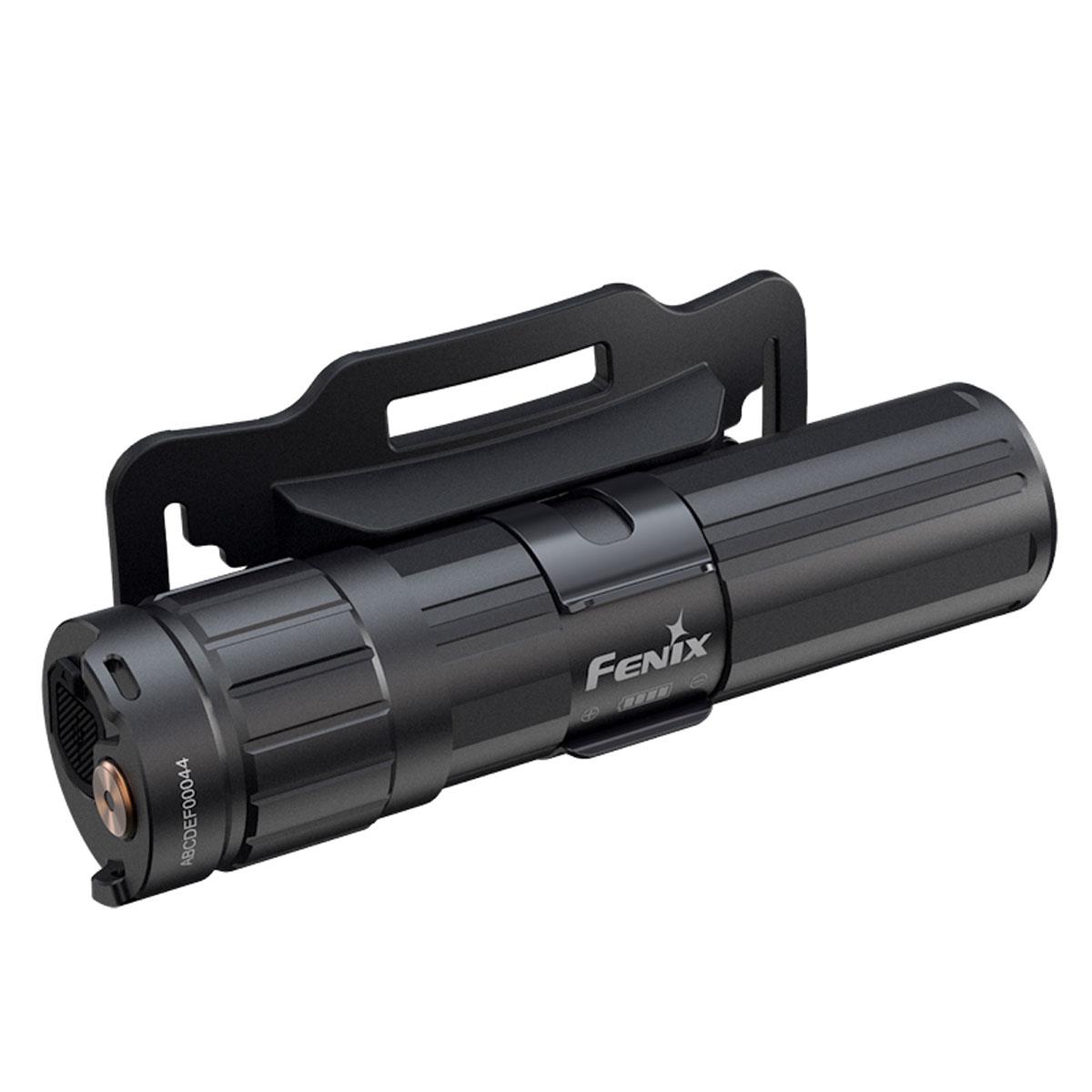

A power extender containing a replaceable 5000mAh, 21700 Li-ion battery is included. This clips to the rear of the headband and can be used to add considerable run time to the headlamp or top up its on board battery between sessions. A 1m extension cable adds versatility to the power extender, enabling it to be mounted to a belt or used in a pocket. The extender also functions as a 5000mAh power bank to charge your phone etc. Both the headlamp and power extender feature an inner waterproof USB-C charging socket with rubber cover.

HM75R is simple to operate, with a metal rotary switch for mode selection, and a central push button for brightness adjustment.

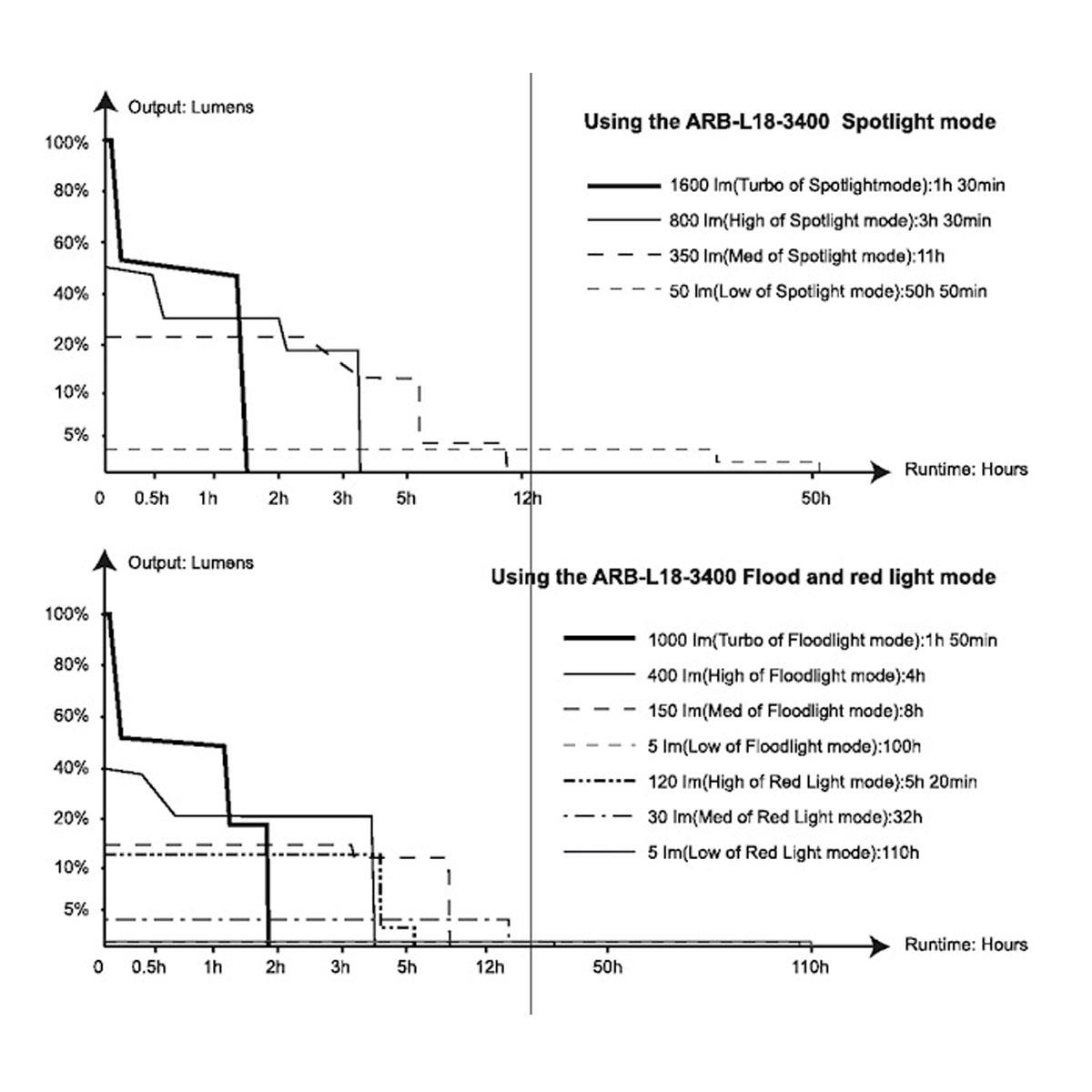

Fenix HM75R headlamp performance:

ARB-L18-3400 internal battery only:

Spotlight Mode:

  • Low: 50 lumens (50 hrs 50 min) – 39m beam
  • Med: 350 lumens (11 hrs) – 101m beam
  • High: 800 lumens (3 hrs 30 min) – 158m beam
  • Turbo: 1600 lumens (1 hr 30 min) – 223m beam

Floodlight mode:

  • Low: 5 lumens (100 hrs) – 5m beam
  • Med: 150 lumens (8 hrs) – 25m beam
  • High: 400 lumens (4 hrs) – 43m beam
  • Turbo: 1000 lumens (1 hr 50 min) – 60m beam

Red light mode:

  • Low: 5 lumens (110 hrs) – 4m beam
  • Med: 30 lumens (32 hrs) – 9m beam
  • High: 120 lumens (5 hrs 20 min) – 16m beam
  • Flash: 5 lumens (220 hrs)

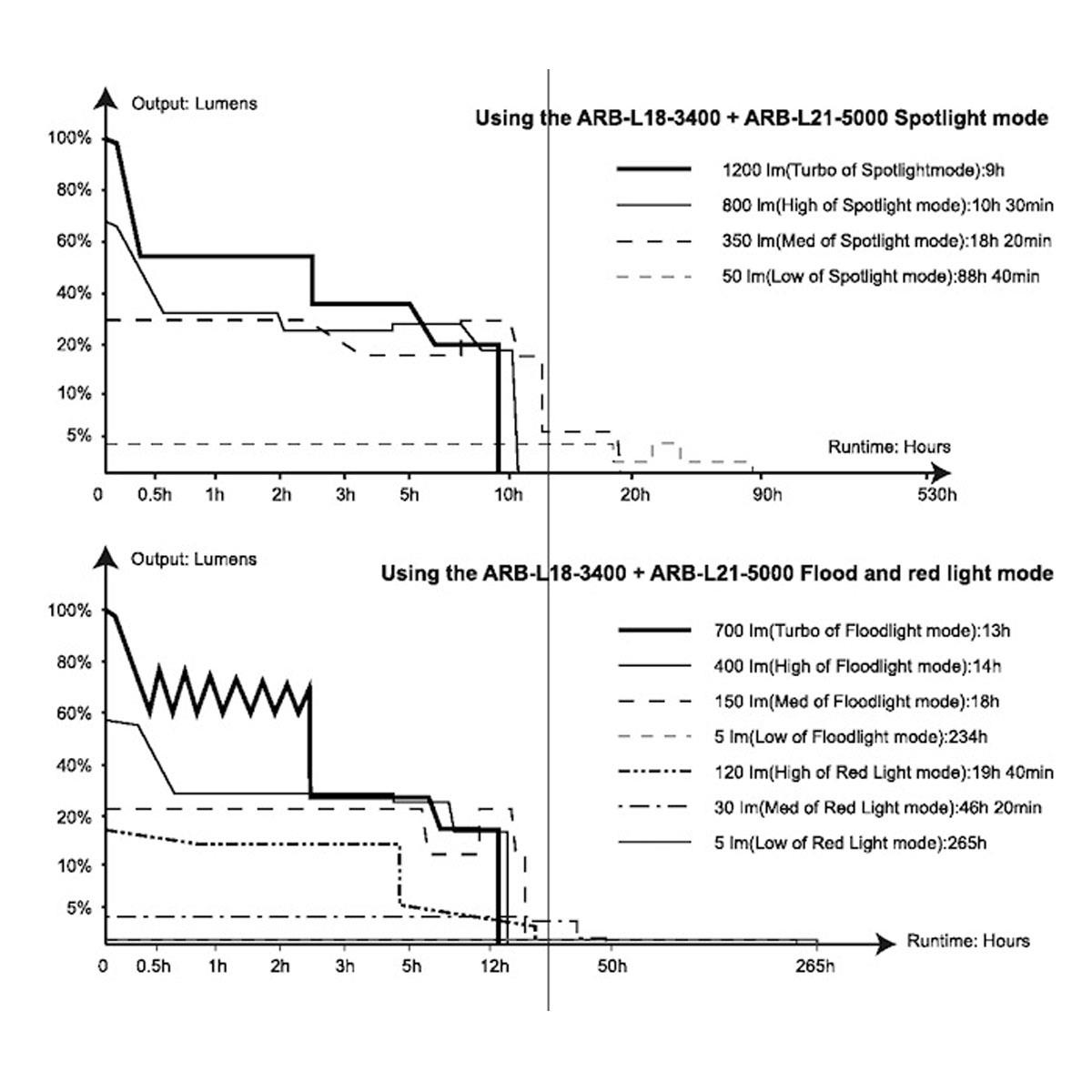

Fenix HM75R headlamp performance:

Power from internal battery and power extender:

Spotlight Mode:

  • Low: 50 lumens (88 hrs 40 min) – 39m beam
  • Med: 350 lumens (18 hrs 20 min) – 101m beam
  • High: 800 lumens (10 hrs 30 min) – 158m beam
  • Turbo: 1200 lumens (9 hrs) – 223m beam

Floodlight mode:

  • Low: 5 lumens (234 hrs) – 5m beam
  • Med: 150 lumens (18 hrs) – 25m beam
  • High: 400 lumens (14 hrs) – 43m beam
  • Turbo: 700 lumens (13 hrs) – 48.5m beam

Red light mode:

  • Low: 5 lumens (265 hrs) – 4m beam
  • Med: 30 lumens (46 hrs 20 min) – 9m beam
  • High: 120 lumens (19 hrs 40 min) -16m beam
  • Flash: 5 lumens (530 hrs)

Please note that the above run times are a guide from the manufacturer and are generated by switching the headlamp on and letting it run without changing the brightness setting. The run times include power step downs due to headlamp heating and diminishing battery level. Changing the brightness setting can drastically affect these run times, particularly if the headlamp boosts back to a higher output.

Fenix HM75R headlamp features:

  • Light weight magnesium construction. Excellent heat sinking for extended service life and superior performance at high output
  • Dual switch operation, 1 x rotary switch + 1 x push button
  • Battery level / charging indicator – 4 level indicator giving a clear reading of battery status
  • USB-C charging ports with inner waterproofing. 4 hr charge time (front battery), 2.5 hrs (rear battery)
  • Can use 2 x CR123 non rechargeable batteries as a back up power source (in the headlamp only)
  • Built-in 50mm proximity distance sensor reduces output to prevent heat damage to headlamp and nearby objects (can be switched off)
  • Breathable, detachable headband with reflective strips
  • Tilt adjustable head for perfect beam alignment
  • IP68 Rated – Dust and water proof. Submersible up to 2 metres for 4 hours
  • 2m impact resistant
  • Over temperature protection at 60c

SPECIFICATIONS

BATTERY TYPE: Dual in-line: 18650 and 21700 battery included

BATTERY QUANTITY: 2

ADDITIONAL BATTERY TYPE: 2 x CR123 (Do NOT attempt to charge CR123 batteries in this product)

LED TYPE: Luminus SST-40 cool white x 1, Luminus SST-20 neutral white x 2, Osram GRQSSPA1.23 red x 1

OUTPUT/RUNTIME: Please refer to main product description

FLASHING MODES: Red Flash

MAX BEAM DISTANCE: 223m

REFLECTOR: Smooth aluminium reflector (main beam), TIR lenses (flood beam), shallow reflector (red beam)

LENS TYPE: Toughened Ultra – Clear glass lens with anti – reflective coating

SWITCH TYPE: Rotary mechanical on-off-mode switch. Central push button brightness switch and on / off sensors for hand gesture operation

CONSTRUCTION: Durable high strength / light weight magnesium alloy

FINISH: Premium Type III hard-anodized anti-abrasive finish

TAIL STAND: No

POCKET CLIP: No

WATERPROOFING: IP68, 2m depth & dustproof

DIMENSIONS: Headlamp: 91mm (Length) x 41mm (width) x 53.5mm (Height): – Power extender: 107.7mm (Length) x 28mm (Width)

WEIGHT: 321 grams (including batteries, headbands and power extender)

FURTHER INFO: Please fully charge both batteries to achieve maximum run times.
