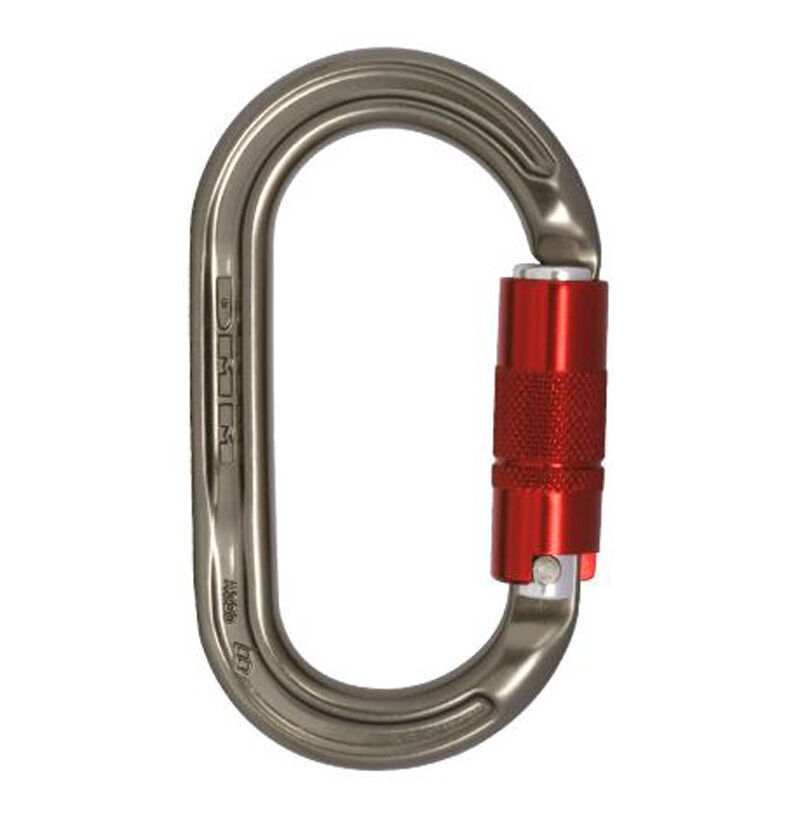

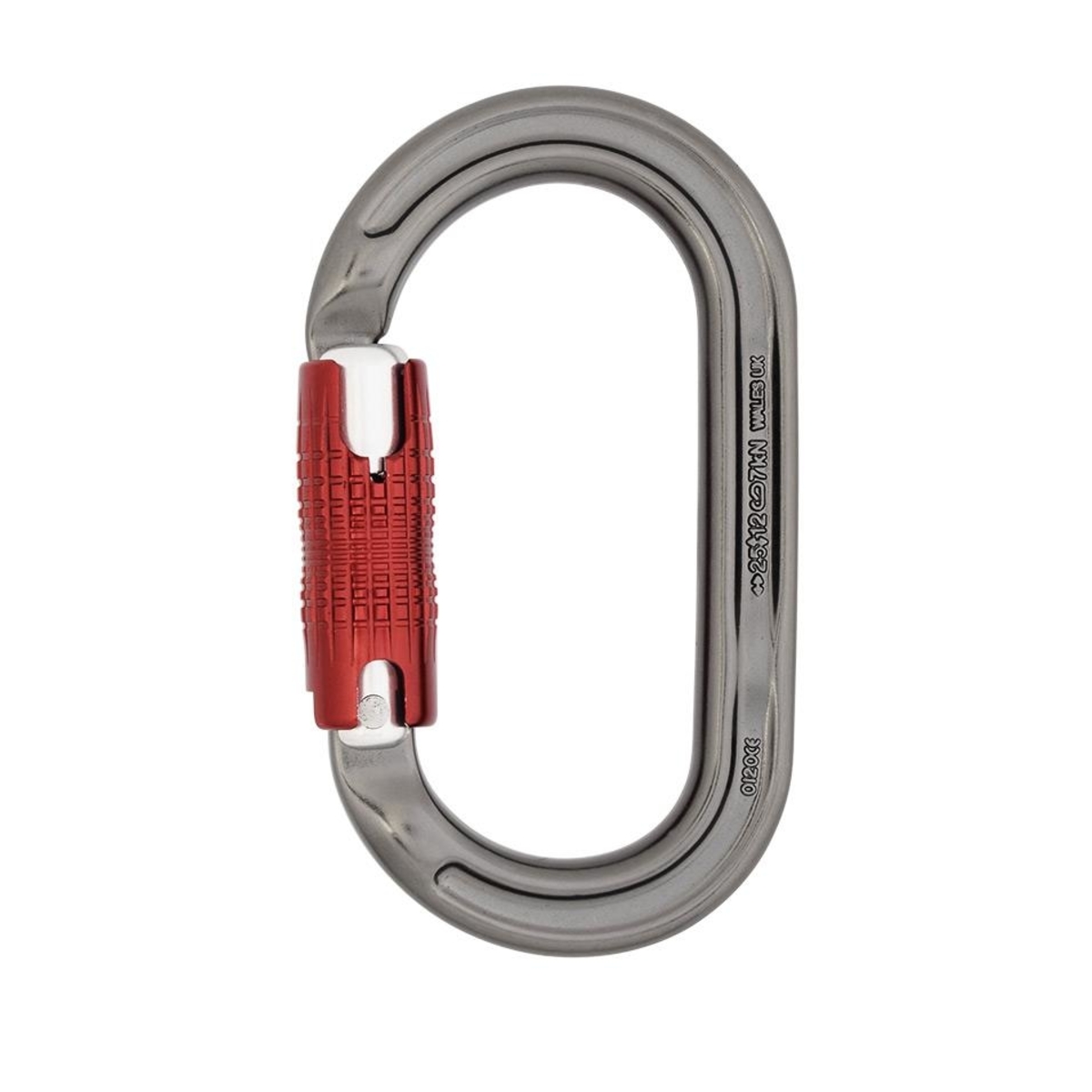

The Ultra O’s symmetrical rope baskets are ideal for assisted breaking devices, pulleys, swivels and shackles. They also give stable loading characteristics, as attachments can self-centre under load with minimal movement from the carabiner.
This carabiner’s nose slots into a groove in the gate, allowing it to achieve full strength without a gate notch. This creates a clean internal profile that won’t catch on gear, bolts or slings, giving easier clipping and removal from systems.
Oval carabiners have curved rope baskets for compatibility with slings, ropes, pulleys, and devices. The baskets allow attachments to self-centre when loaded, giving greater stability in systems that D shaped carabiners. Their symmetry allows them to work both ways in rigging systems.
Kwiklock is an Auto-locking gate requiring two separate actions to open. Kwiklock gates are suitable when auto-locking gates are a necessity, but rigging systems are relatively static and anchor points are easy to monitor.
MBS (Major Axis)|
MBS (Minor Axis)|
MBS (Gate Open)|
Gate Opening (X)|
Ultra O Kwiklock|
63 x 109mm|
EN 362:2004 B/ T, EN 12275:2013 B|
