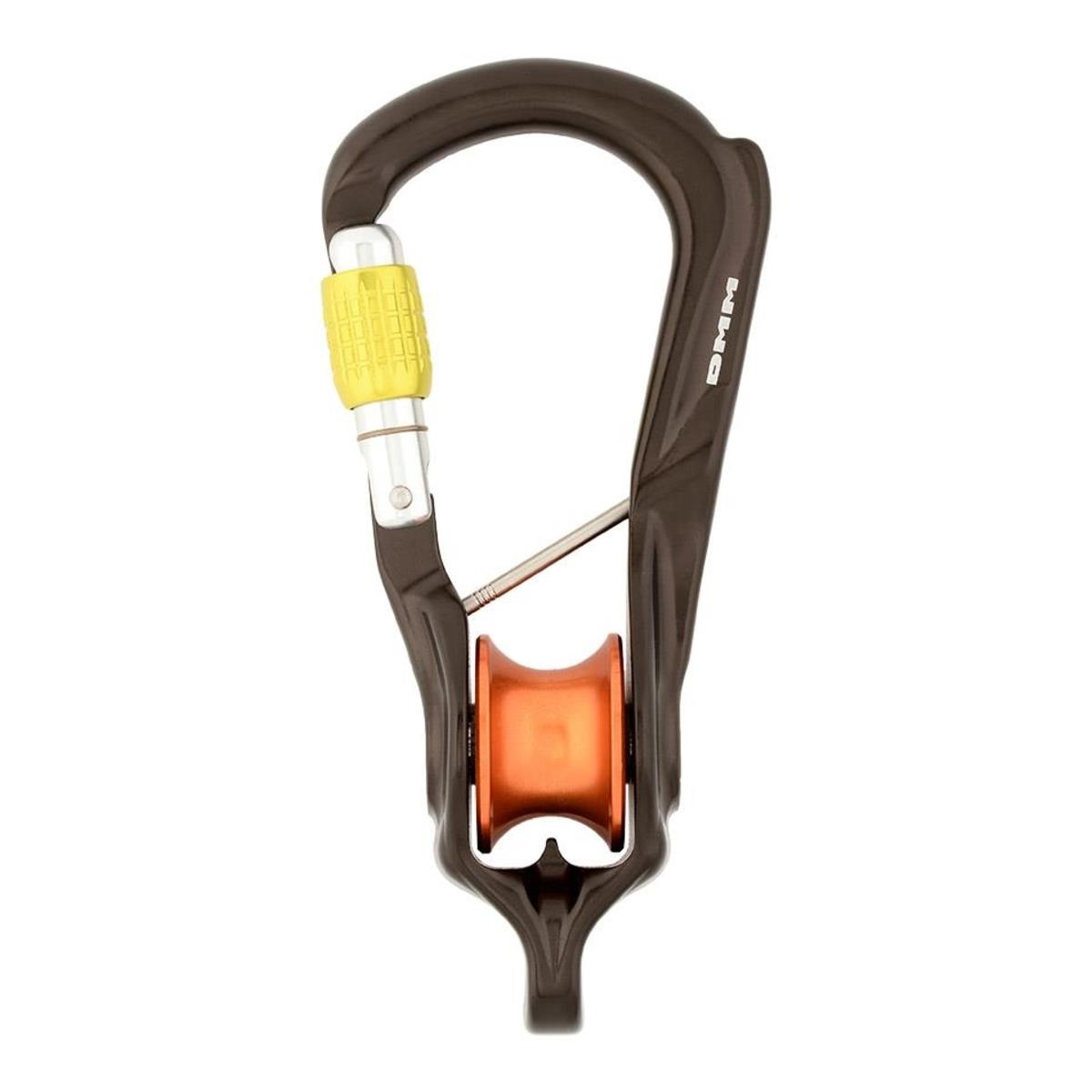

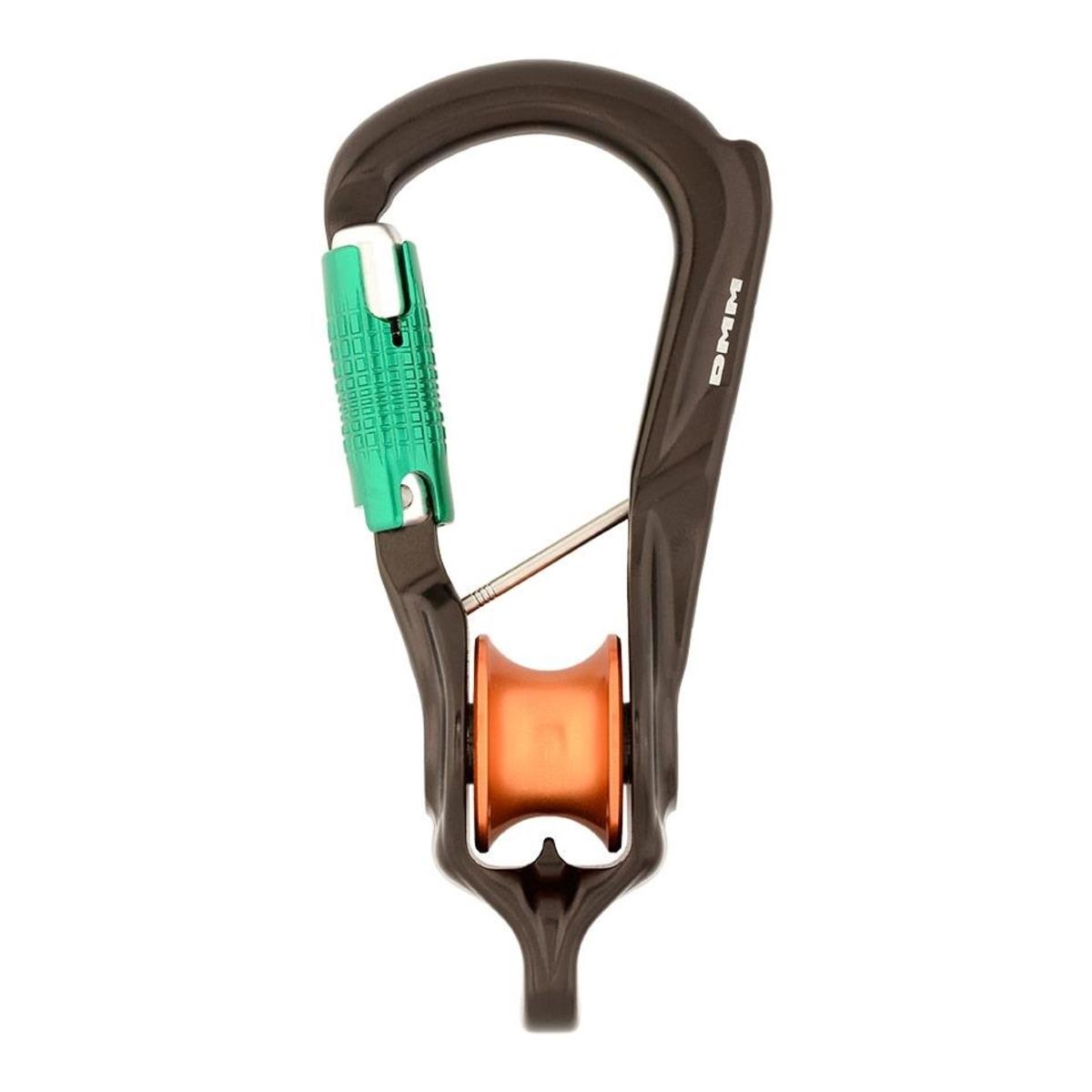

A connector with an integrated pulley sheave. It features a high efficiency roller bearing sheave(s), threaded removable captive bar and a full strength textile friendly becket.
The uniquely profiled spine and captive bar aid in maintaining correct orientation.
The design of the Revolver Rig is such that when using a connector attached to the becket any friction between the connector and rope is minimised.
FEATURES
- Large sheave tread diameter for large bend radius
- High efficiency roller bearings
- Full strength becket accepts most connectors or direct textile connection
- Removable captive bar
- Keylock nose for snag free operation
- Uniquely profiled spine to aid correct orientation
TECH SPEC
MBS Major Axis: 25kN
MBS Minor Axis: 7kN
MBS Gate Open: 7kN
WLL: 5kN
Dimensions: 76 x 161mm
Weight: 203g (Locksafe) 196g (Screwgate)
Certification: EN12278:2007, EN362:2004 B/T
