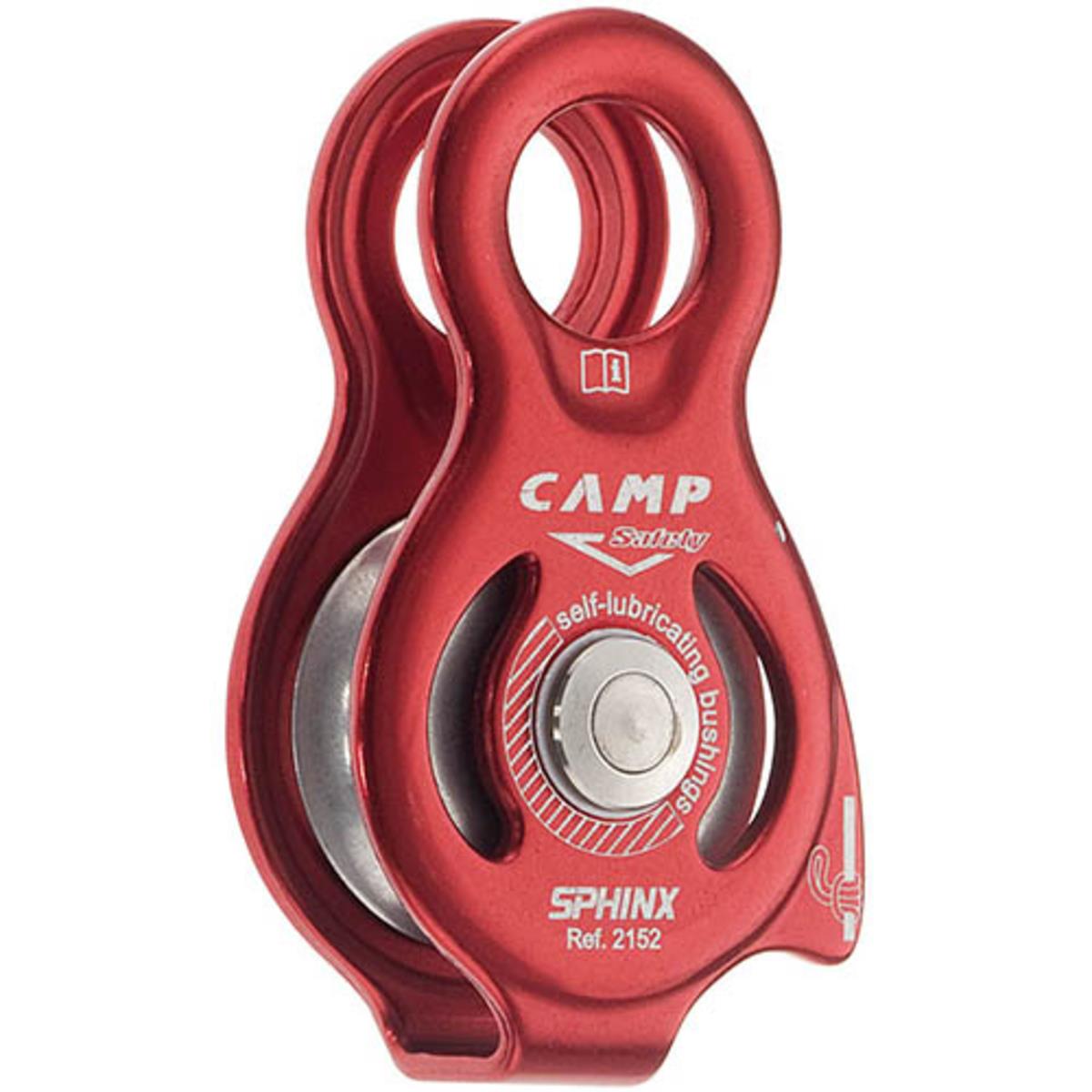

A super-compact, ultralight pulley with fixed side plates.

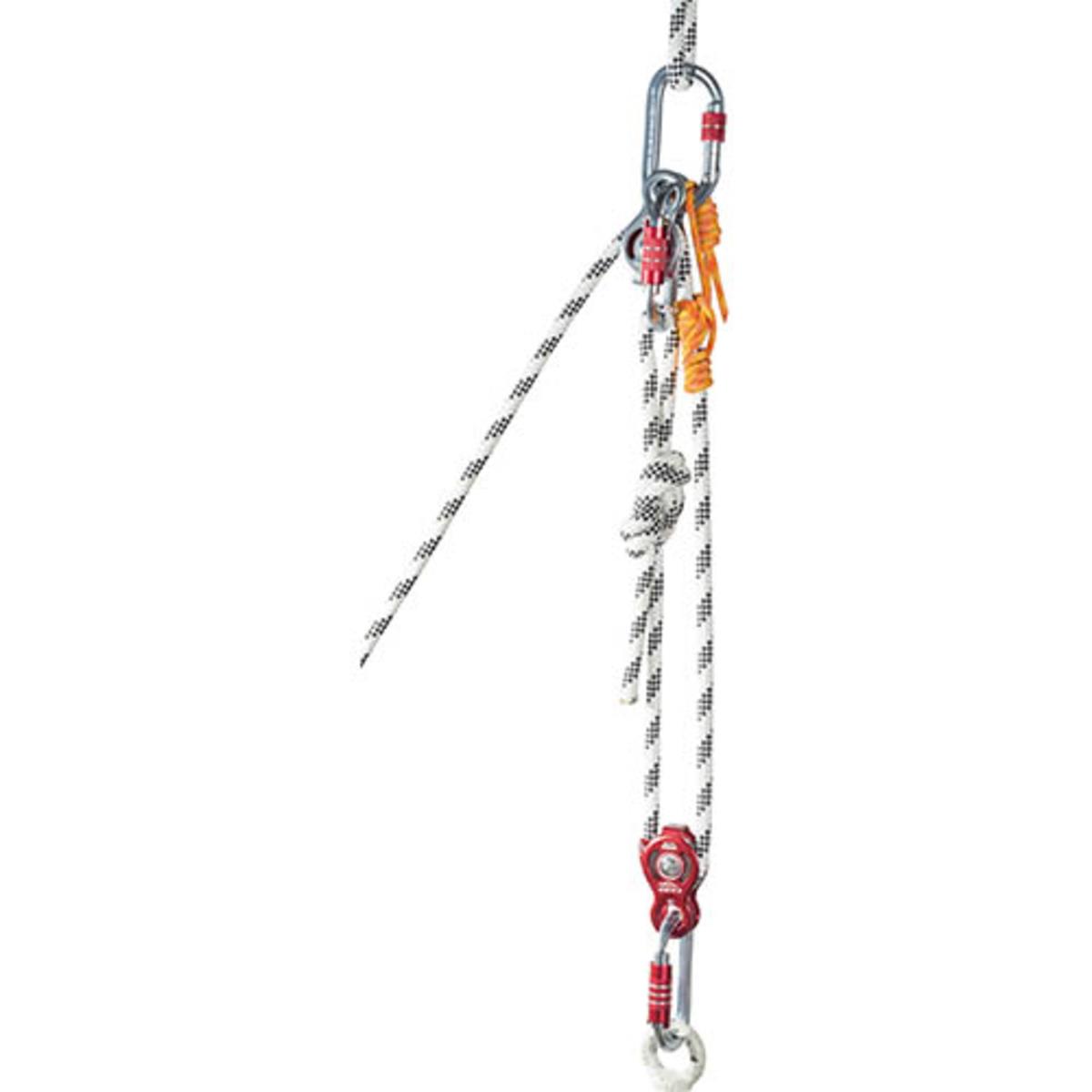

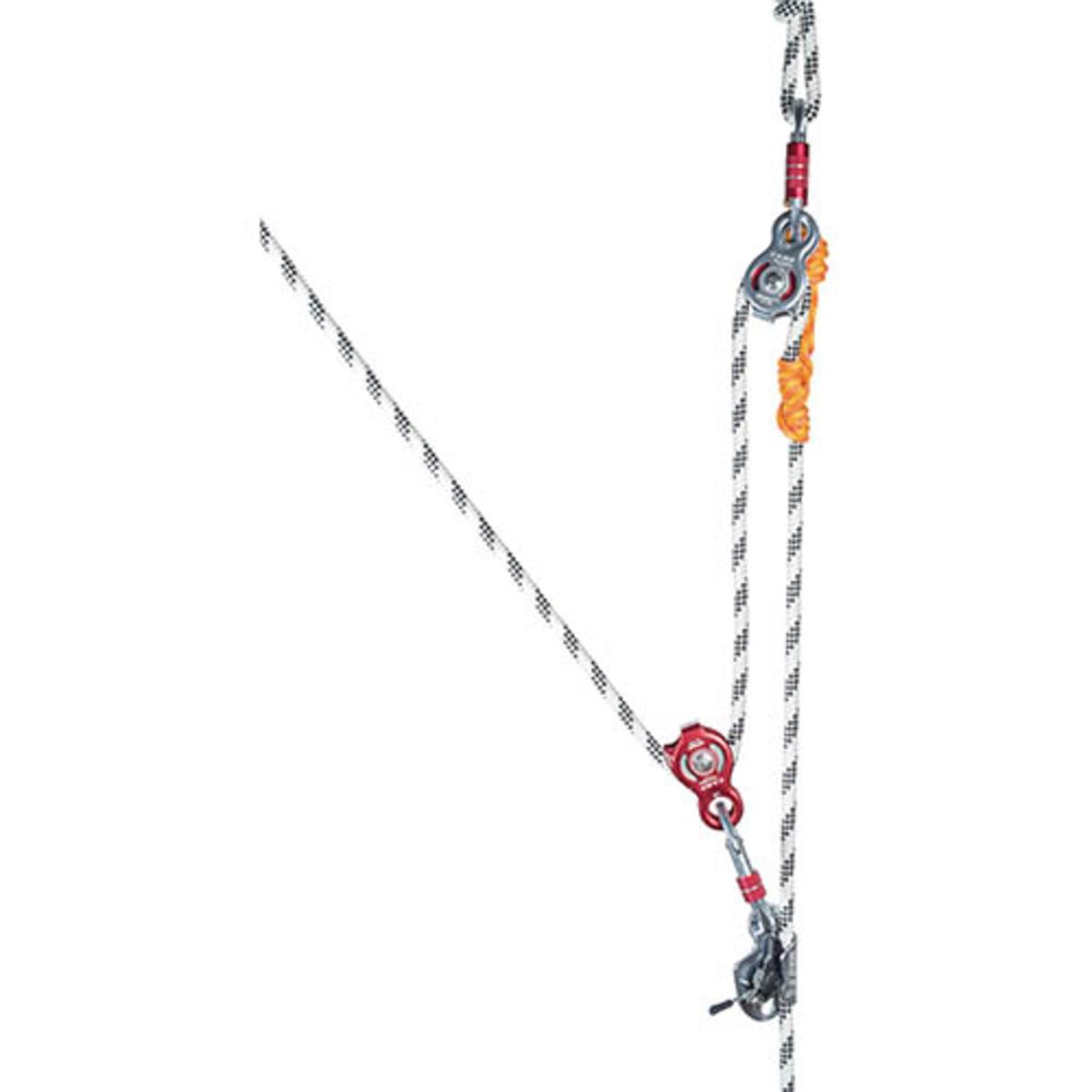

The Sphinx is very easy to handle and convenient to carry on a harness while ski touring or mountaineering. The attachment hole is large enough to allow full rotation of a standard locking carabiner. Self-lubricated brass bushings are perfect for light applications at low speed. Unlike other pulleys with fixed side plates, the Sphinx allows for a prusik knot to be installed on one side (aramid cord suggested) making it an ideal pulley for rigging a haul system on route or managing crevasse rescues.
- Fixed side plates
- Self-lubricated brass bushings with 80% efficiency
- Super-compact aluminum alloy body and sheave, stainless steel axle
- For ropes up to 13 mm
Inner Sheave Diameter: 28mm
Max. Rope Diameter: 13mm
Max. Working Load: 2kN x 2
Breaking Load: 24kN
